Baghouse Filters & Parts

Atlantic Construction Services, Inc. provides filter’s for dust collectors in every industry. Below is a list of the most common:

  • Asphalt
  • Cement
  • Chemical
  • Food Processing
  • Foundry and Metal Products
  • Power Generators & Industrial Boiler
  • Wood, Sand & Minerals

Selecting the Correct Filter

Selecting the correct baghouse filter is vital for reaching ideal performance from your baghouse. Selecting the wrong type of filter will result in inefficiency, emitting excess pollutants, and can cause damage to other systems and plant components. Our baghouse expert can assist you in selecting the best baghouse filter for your industry.

DUST COLLECTOR FILTERS

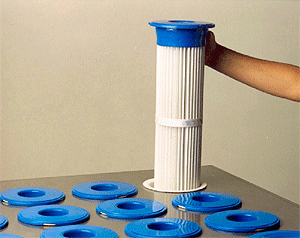

Pleated Filters
Pleated filters have few advantages over traditional filters. The pleats increase the filter’s surface area allowing for lower air to cloth ratio in the same space and higher dust retention. Often pleated filter bags can be made to fit most existing baghouses without the need for extensive redesign. Pleated bags are easily mounted into a wide range of cell plated for both top and bottom load dust collectors.

Advantages:

  • Lower Maintenance Costs
  • Higher Efficiency
  • Greater Air Flow per Filter
  • Less Frequent Change Out

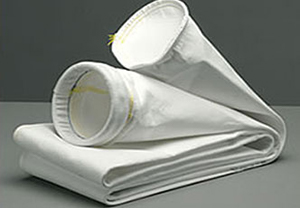

Pulse-Jet Filters
Pulse-Jet and plenum pulse baghouses collect dust on the outside of the filter. Clean air exits through the inside of the bag while dust particles collect on the outside filter surface, and a support cage prevents the bag from collapse during filtration.

Reverse Air Filter Bags
Particle’s are collected on the inside surface on the bag in the baghouse using a reverse air cleaning system. The dust-laden gas enters through the inlet (dirty side) of the collector and flows though the bag, and the clean air exits though the outside of the bag. A steel bottom of the bag protects the filter bag from collapsing. Reverse air bag top and bottom designs vary by cleaning system and original equipment. We can provide various type of bags. Clamps, bottoms, and additional accessories can be provided to complete your bag order.

Shaker Filters
Shaker Filters - Shaker Filters collects particles on the inside surface of the bag, and the buildup of dust holds the bag open. These filter bags hang vertically in rows and the bag tops are closed, allowing them to be attached to the shaking mechanism across the width of the collector.

DUST COLLECTOR FILTER FABRICS

Filters are available in the following fabrics.

PolyesterAvailable in woven or felt. This product is the most commonly used fabric, and is capable of operating up to 275°F
AcrylicThis product provides chemical resistance while operating up to 250°F. Available on both woven or felt.
Aramid This product preforms at high temperatures while retaining strength, abrasion resistance, and dimensional stability, capable of operating up to 400°F.
PPS Ryton ©, Torvon ©, Procon ©This product provides chemical resistance, and can operate up to 375°F.
P-84©Designed to provide enhanced efficient and maximize airflow allowing operations at temperatures up to 500°F
GlassThese products with the various finish options provide a high chemical and temperature resistance, capable of operating up to 500°F

DUST COLLECTOR FILTER FINISHES

Filters are available in the following finishes

SingeThis finish is used on the collection surface of the bag to promote particulate discharge during cleaning.
Flame Retardant
HCE Silicone This finish is used to provide water repellency, abrasion resistance, and high collection efficiency.
PTFE MembraneThis product is produced by heat laminating, and provides the highest collection efficiencies.

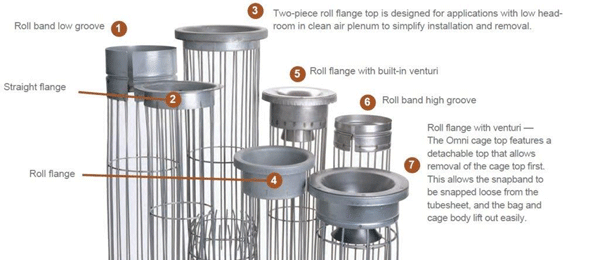

DUST COLLECTOR FILTER CAGES

Atlantic Construction Service’s Inc. can provide a wide range of dust collector cages to fit most baghouse makes and models. Cage construction typically consist of 10, 12 or 20 vertical wires. The horizontal ring spacing on the cage can be 4", 6" or 8". If height restrictions are a problem, two piece cages are also available.

Common Styles:

  • Rolled Top
  • Split Collar

Materials/Finishes

  • Carbon Steel
  • 304 Stainless Steel
  • 316 Stainless Steel
  • Epoxy
  • Galvanized Steel

Baghouse Accessories:

  • Pressure Gauges
  • Timer Boards
  • Air Locks
  • Sonic Horns
  • Solenoids
  • Diaphragm Valves
  • Replacement Kits

Leak Test Supplies:

  • Leak Powder
  • Precoat Powder
  • Black Light
